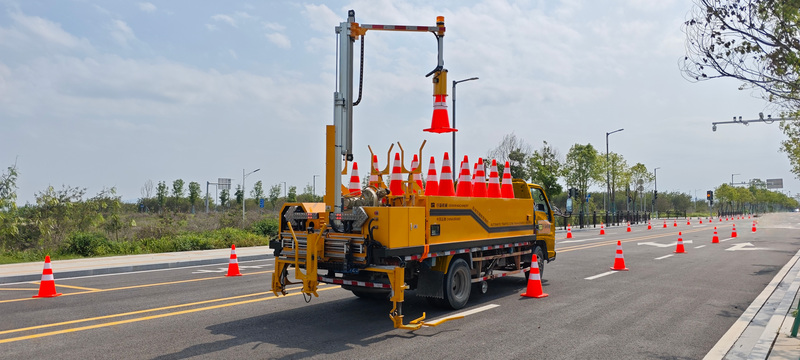

GXMEL-Q700SEA Automatic traffic cone management machine
Application Area
Automatic traffic cone management machine is a professional traffic cone retracting operation vehicle, the vehicle design is reasonable, the cloth cone and cone retracting operation speed is fast, saving manpower, easy operation, the road cone is placed neatly, the interval is consistent, the entire construction process is pollution-free, does not damage the road surface, safety and environmental protection, and the traffic cone and reflective film will not be damaged during the retracting operation. Installed on the truck, suitable for all levels of highways, national and provincial roads and municipal roads in road rescue and rescue, road patrol, road maintenance and maintenance operations, as well as traffic police departments to carry out traffic control operations, quickly and safely to complete the placement and folding of traffic cones.
The whole vehicle is operated by one driver to operate.
The equipment is composed of vertical lifting arm, grasping device and belt conveying platform to realize the automatic placement and recovery of traffic cones without manual intervention.
Device Function
GXMEL-Q700SEA Automatic traffic cone management machine key Features include：
1. The entire machine is well-designed. The driver operates the vehicle working by staying in the cab and using the controller；

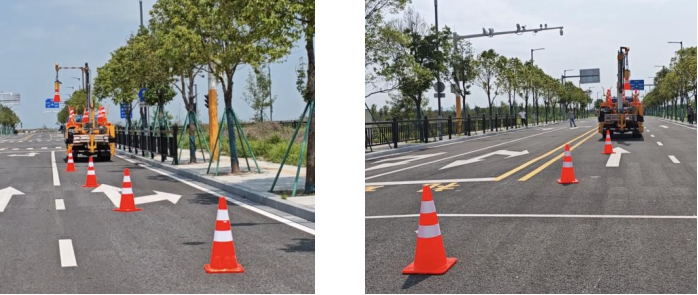

2. When the vehicle is moving forward, place the transition zone diagonal traffic cones on the left/right sides；

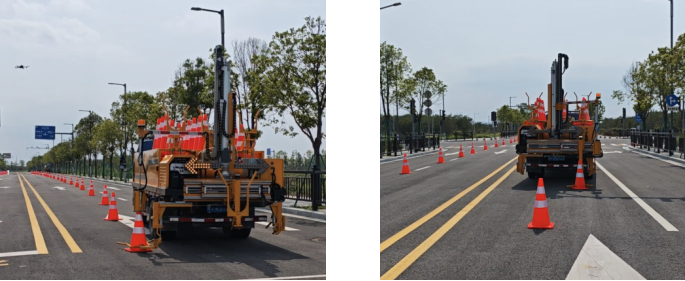

3. When the vehicle is moving forward, collect the transition zone diagonal traffic cones on the left/right sides；
4. When the vehicle is reversing, collect the transition zone diagonal traffic cones on the left/right sides；
5. When the vehicle is moving forward, place the straight traffic cones on the left/right sides；
6. When the vehicle is moving forward, collect the straight traffic cones on the left/right sides；
7. When the vehicle is reversing, collect the straight traffic cones on the left/right sides；
8. The spacing of traffic cones can be set arbitrarily；
9. The length of the transition triangle area can be set.
Specification
Model | GXMEL-Q700SEA |
Overall Dimensions | 4700×2000×2890mm （Length x Width x Height） |
Unit Mass | 2300kg |
Cone capacity | 216ps（3×6×12）(Customizable) |
Cone Height | 700mm (Customizable) |
Spacing between cones | ≥1m |
Maximum number of cones | 360ps/h |
Working Speed | 5～20km/h |
Working Speed | 5～20km/h |
